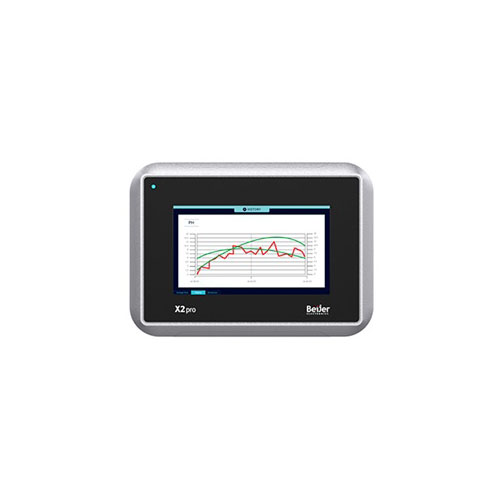

X2 series 4″ HMI
$995.00
each ex-GST*
4.3” HMI with iX runtime
Part Number: X2 pro 4-B2 [630000105]
- 480 × 272 pixel (16:9)
- TFT-LCD touch screen
- 1.5 GB application memory
- Ethernet 1×100 Mbit
- -10°C to +60°C operating temperature
- CE, FCC, KCC, UL approvals
- DNV GL, KR, LR, ABS, CCS, BV, NK, RS marine approvals
The X2 pro series includes a wide range of high performance industrial HMI panels from ultra-compact 4-inch to 21-inch panels designed for demanding applications. All with the high performance of powerful ARM Cortex-A9 processors, the latest screen technology and a wide range of connectivity options to cover all your automation needs.
With powerful single or dual core ARM Cortex-A9 processor delivers fast screen changes and program execution in demanding applications.
Robust aluminum housing with IP65, NEMA 4X/12 and UL Type 4X/12 front. Resistant to direct rain, snow or wash-downs, dirt, grime and dust.
The wide -10°C to +60°C operating temperature range satisfies the demands of most industries.
Programmed with iX-Developer – The iX software gives you smart communication tools. It combines top-class vector graphics and easy-to-use functions that provide reliable operation, and almost limitless connectivity to your other equipment.
Benefit from an extensive list of drivers. Within iX Developer, you get almost limitless connectivity to your other equipment through the extensive list of drivers.
Supports connectivity to all major PLC brands:
Allen-Bradley: CompactLogix / ControlLogix / FlexLogix / Micro800 / SLC / MicroLogix Series
Fatek Automation: FBe-n-s / H-BI Series
Mitsubishi Electric: FXxx / A / Q Series
Omron SYSMAC: CP / CS / CJ / NJ / NX Series
Siemens: S7-200 / 1200 / Logo
Hitachi: EHV Series
Schneider Electric: MODBUS RTU / MODBUS TCP
Delta Electronics: DVP / AH500 Series
Panasonic: FP Series
Keyence: KV-3000 / 5000 / 5500/ 7500 / KV-Nano
Beckhoff Automation: Twincat(Ethernet)
Koyo/PLCdirect: DirectNet
and many more. Refer to PLC drivers list at the link below:
|
Mechanical |
Mechanical size: 145 x 104 x 50mm
Mounting option: Panel Mount or VESA 50 x 50 Number of touches: 1million finger touch operations Touch type: Resistive Cut-out size: 130 x 89mm Weight: 0.5 kg Housing material: Powder-coated aluminum, Gray |
| Power | Input voltage: 24 V DC (18 to 32 VDC)CE: The power supply must conformwith the requirements according to IEC 60950 and IEC 61558-2-4.UL and cUL: The power supplymust conformwith the requirements for class II power supplies.
Power consumption: (max) 12W Input fuse: Internal DC fuse |
| System | CPU: i.MX6Solo Single Cortex-A9 1.0GHz 512kBL2cache
RAM: 512 MB FLASH: 2GB SSD(eMMC), 1.5GB free for application |
| Display | Size diagonal: 4.3″ diagonal
Resolution: 480×272 pixels Backlight: LED Backlight Backlight life time: 50000 hours Backlight brightness: 300 cd/m2 Backlight dimming: Industrial Dimming Display type: TFT-LCD with LED backlight |
| Serial communication | Number of serial ports: 1 Port 9pin DSUB
Serial port 1: RS 232 (RTS/CTS) Serial port 2: RS422/485 Serial port 3: RS485 (only if COM 2 is RS485) |
| Ethernet communication | Number of Ethernet ports: Ethernet port 1 1x 10/100 Base-T (shielded RJ45) |
| Expansion interface | Expansion port: Yes, ciX expansion module
SD card: SD and SDHC USB: 1xUSB 2.0 500mA |
| Environmental | Operating temperature: -10°C to +60°C
Storage temperature: -20°C to +70°C Shock: 15g, half-sine, 11ms according to IEC60068-2-27 Vibration: 1g, according to IEC 60068-2-6, Test Fc Sealing front: IP66, NEMA 4X/ 12 and UL50E Type 4X/ 12 Sealing back: IP20 Humidity: 5% – 85% non-condensed Altitude: (max) < 3000m |
