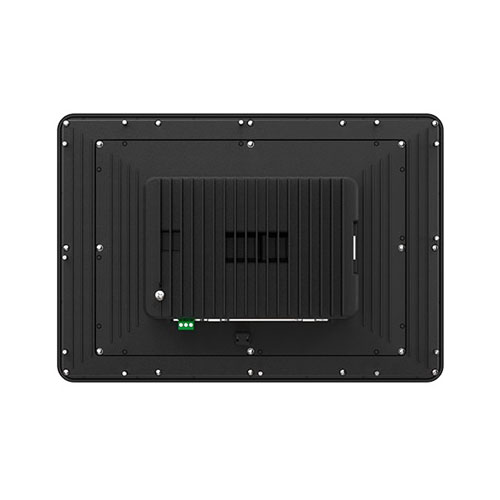

X2 series 15″ HMI extreme HP


each ex-GST*

15” Rugged High Performance HMI with iX runtime

Part Number: X2 extreme 15 HP [640014705]

  • 1280 × 800 pixel (16:10) TFT-LCD touch screen
  • High brightness display
  • 3.5 GB application memory
  • Ethernet 2×100 Mbit
  • -30°C to +70°C operating temperature
  • IP66, NEMA 4X/ 12 and UL Type 4X/ 12 Front Seal
  • DNV GL, KR, LR, ABS, CCS, BV, NK, RS marine approvals
  • UL Class I Div 2, ATEX/IECEx Zone 2,22

X2 extreme HMI panels are certified by all major classification societies. Designed to perform in rugged outdoor environments and in hazardous areas where gases, vapors and dust are present. Extended environmental capabilities include operating temperatures from -30°C to +70°C, high vibrations and high-pressure wash-downs.

X2 extreme HMI panels are available in 7, 12 and 15 inches, all in 3 versions: Panel mount standard and high-performance versions, and fully sealed high-performance versions. All high-performance versions offer high brightness display and optional integrated CODESYS PLC functionality.

X2 extreme furthermore offers cost-effective, rugged only versions (RO) for applications where no marine or hazardous certifications are needed, and certified only versions (CO) including marine or hazardous certifications for applications where no rugged capabilities are needed.

The X2 panels meet extended classes of marine certifications not normally carried by HMIs, making them suitable for all onboard locations.

Certified for use in hazardous areas where gases, vapors and dust are present.

Supports connectivity to all major PLC brands:
Allen-Bradley: CompactLogix / ControlLogix / FlexLogix  / Micro800 / SLC / MicroLogix Series
Fatek Automation: FBe-n-s / H-BI Series
Mitsubishi Electric: FXxx / A / Q Series
Omron SYSMAC: CP / CS / CJ / NJ / NX Series
Siemens: S7-200 / 1200 / Logo
Hitachi: EHV Series
Schneider Electric: MODBUS RTU /  MODBUS TCP
Delta Electronics: DVP / AH500 Series
Panasonic: FP Series
Keyence: KV-3000 / 5000 / 5500/ 7500 / KV-Nano
Beckhoff Automation: Twincat(Ethernet)
Koyo/PLCdirect: DirectNet

and many more. Refer to PLC drivers list at the link below:

Driver List


Mechanical size: 410 x 286 x 73mm

Operating temperature: -30°C to +70°C

Mounting option: Panel Mount or VESA 50 x 50

Number of touches: 1million finger touch operations

Touch type: Resistive

Cut-out size: 394 x 270mm

Weight: 4.1 kg

Housing material: Powder-coated aluminum, Black

Power Input voltage: 24 V DC (18 to 32 VDC)CE: The power supply must conformwith the requirements according to IEC 60950 and IEC 61558-2-4.UL and cUL: The power supplymust conformwith the requirements for class II power supplies.

Power consumption: (max) 28 W

Input fuse: Internal DC fuse

System CPU: i.MX6Quad, Quad ARMCortex-A9 1.0GHz 1MBL2cache


FLASH: 4GB SSD(eMMC), 3.5GB free for application

Display Size diagonal: 15.4″ diagonal

Resolution: 1280×800 pixels

Backlight: LED Backlight

Backlight life time: 100000 hours

Backlight brightness: 1000 cd/m2

Backlight dimming: Marine optimized dimming

Display type: TFT-LCD with LED backlight

Serial communication Number of serial ports: 2 Port 9pin DSUB

Serial port 1: RS 232 (RTS/CTS)

Serial port 2: RS422/RS485/CAN

Serial port 3: RS485/CAN

Ethernet communication Ethernet ports: 2

Ethernet port 1 1×10/100 Base-T (shielded RJ45)

Ethernet port 2 1×10/100 Base-T (shielded RJ45)

Communication CAN Number of CAN ports: 2

CAN port 1 1.0 MBit

CAN port 1 1.0 MBit

Expansion interface SD card: SD and SDHC

USB: 1xUSB 2.0 500mA

Environmental Operating temperature: -30°C to +70°C

Storage temperature: -40°C to +80°C

Shock: 40g, half-sine, 11ms according to IEC60068-2-27

Vibration: 4g, according to IEC 60068-2-6, Test Fc

Sealing front: IP66, NEMA 4X/ 12 and UL Type 4X/ 12

Sealing back:  IP20

Humidity:  5% – 85% non-condensed

Altitude: (max) < 3000m
