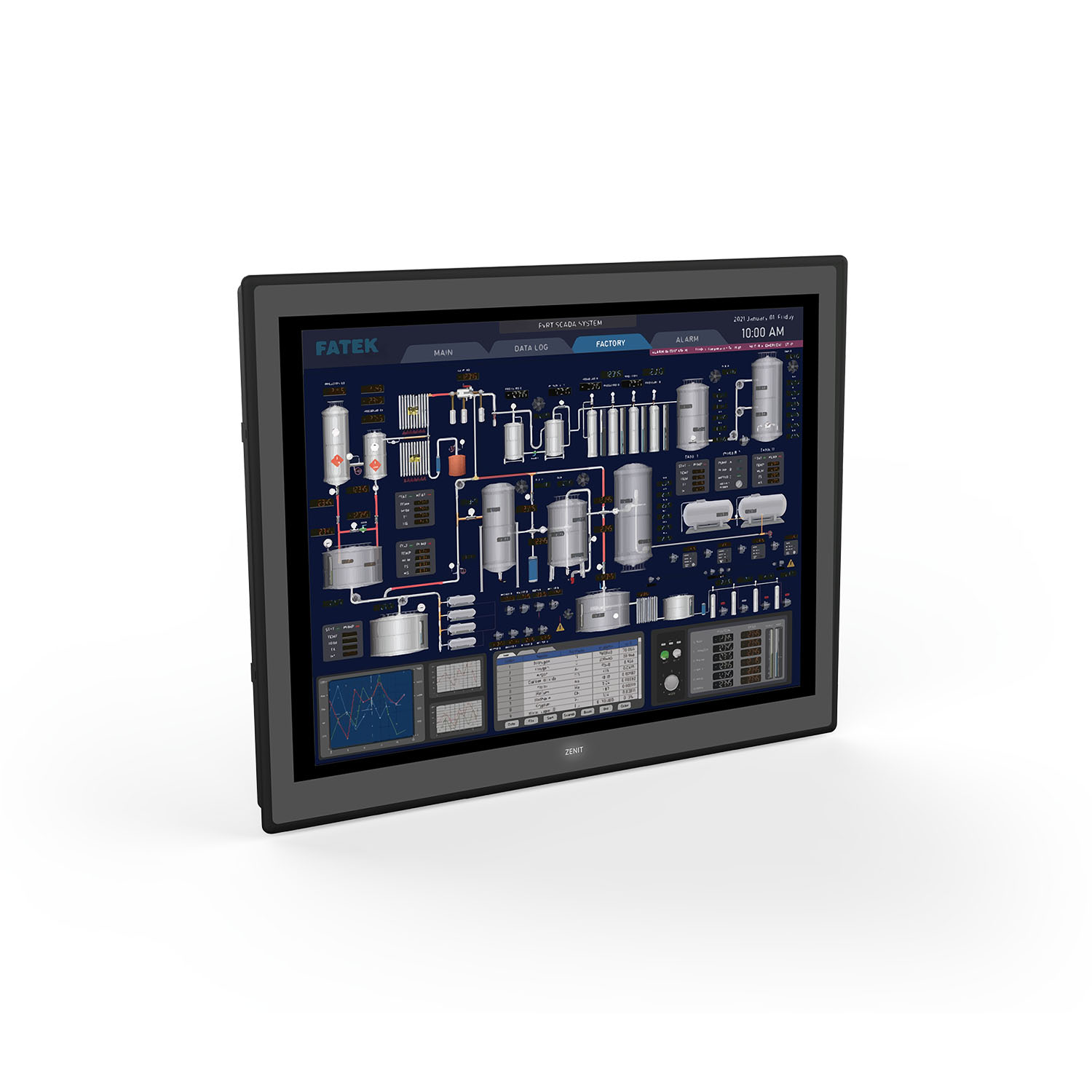

P5B series 15″ HMI – Advanced

$2,495.00

each ex-GST*

HMI with 15″ TFT LCD display (Advanced Version)

Part Number: P5150ZB

  • Cortex 1GHz Processor
  • Built-in PLC Expansion function
  • PCB coating for Stability in Harsh Environment
  • Supports FATEK IoT Cloud & Remote Access *
  • Free Programming Software Fv-Designer
  • Connectivity to all major PLC brands

The Fatek Automation P5 operator panel is an advanced and user-friendly operator interface that revolutionizes the way operators interact with industrial automation systems. Designed with cutting-edge technology and intuitive features, the P5 panel offers seamless control and monitoring capabilities, enhancing efficiency and productivity in various industries. Its sleek and ergonomic design, coupled with a high-resolution touch screen display, provides operators with a seamless and intuitive interface to manage and monitor complex processes. With its robust functionality and extensive connectivity options.The P5 series HMI is programmed using Fatek’s Fv-Designer software.

Fv-Designer software is a powerful tool that empowers engineers and automation professionals to create, configure, and customize HMI applications for Fatek Automation HMI P5 series products. With its user-friendly interface and comprehensive features, Fv-Designer simplifies the design process, allowing users to develop visually appealing and highly functional HMI applications. The software offers a wide range of tools and resources, such as drag-and-drop functionality, pre-designed graphical elements, and an extensive library of symbols, enabling users to create intuitive and interactive interfaces tailored to their specific automation needs. Whether it’s designing control screens, setting up alarms, or creating data displays, the Fatek Automation Fv-Designer software provides a seamless and efficient platform for developing robust HMI applications.

The Fatek Automation P5 HMI offers an innovative IoT (Internet of Things) functionality that revolutionizes the way industrial automation systems are connected and monitored. With its built-in IoT capabilities, the P5 HMI enables seamless integration and communication with other devices, sensors, and systems, both within and beyond the local network. This opens up a world of possibilities for collecting and analyzing real-time data, remotely accessing and controlling equipment, and implementing intelligent automation strategies.

Supports connectivity to all major PLC brands:
Allen-Bradley: CompactLogix / ControlLogix / FlexLogix / SLC / MicroLogix Series
Fatek Automation: FBe-n-s / H-BI Series
Mitsubishi Electric: FXxx / A / Q Series
Omron SYSMAC: CP / CS / CJ / NJ / NX Series
Siemens: S7-200 / 1200 / Logo
Hitachi: EHV Series
Schneider Electric: MODBUS RTU /  MODBUS TCP
Delta Electronics: DVP / AH500 Series
Panasonic: FP Series
Keyence: KV-3000 / 5000 / 5500/ 7500 / KV-Nano
Beckhoff Automation: Twincat(Ethernet)
Koyo/PLCdirect: DirectNet

and many more. Refer to PLC connection manual or Fv-Designer for more info on supported drivers.

Display

Panel Size: 10.1″ TFT (16:9)

Panel Resolution: 1024 x 600 pixels

Brightness: 300 (cd/㎡)

Contrast Ratio: 450

Backlight Type: LED

Backlight Life Time: 25,000 Hrs

Colors: 16.7M

LCD Viewing Angle: 50/20/55/55 (T/B/L/R)

Touch Type: 4-wire Resistive Type

Accuracy: X axis±2%; Y axis±2%

Memory Flash: 256MB

Ram: 128MB

System CPU: 32 bit RISC Cortex 600MHz

RTC: Yes

Dimension / Weight Dimensions W x H x D: 271.5 x 213.5 x 44.9 (mm)

Cut-Out: 259.5 x 201.5 (mm)

Weight: 1380 (g)

Protection Structure: IP65 / Rear Case: IP20

PCB Coating:  Yes

Operating Temp: 0~50℃

Storage Temp: -20 ~ 60℃

Relative Humidity: 10%~90% (40°C Non-condensing)

Withstand Voltage: 500VAC/20mA/1 Min. (between charger & FG terminals)

Vibration Endurance: 5 to 9Hz Half-amplitude: 3.5mm ; 9 to 150 Hz Constant acceleration: 19.6m/s2 (2G) ; 3 directions of X, Y, Z : 10times (IEC61131-2 complaints)

I/O Port Serial 1 (DB-9): RS-232 (2W)

Serial 2 (Terminal Blocks): RS-422/485 (4W) RS-485 (2W)

RS-422/485 Isolation: N/A

Ethernet: 10M / 100M

USB HOST: USB2.0 x 1

USB Device: USB2.0 x 1(Mini-USB)

Micro-SD Slot: YES

Audio Output: YES

Video Input: N/A

Termination Switch: YES

I/O Extension PLC Extension: YES

HMI Extension: YES

Wireless Module: YES

Power Power Input Range: 14 ~ 32VDC

Power Isolation: YES

Isolation Resistance: Exceed 50MΩ at 500VDC

Power Consumption: 12.02 W @24VDC)
