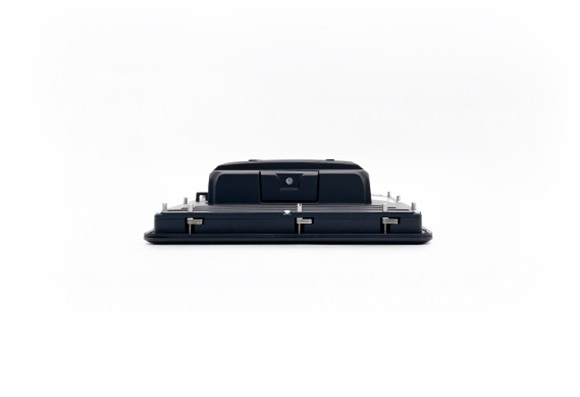

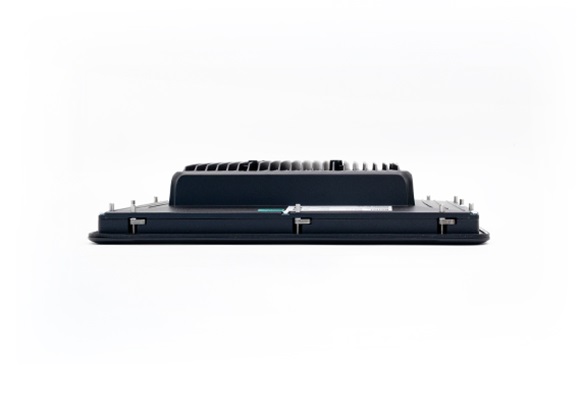

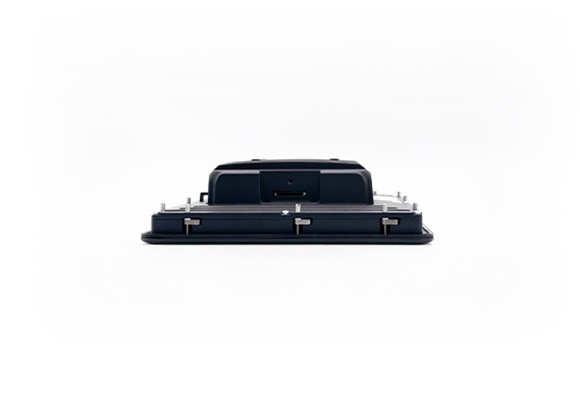

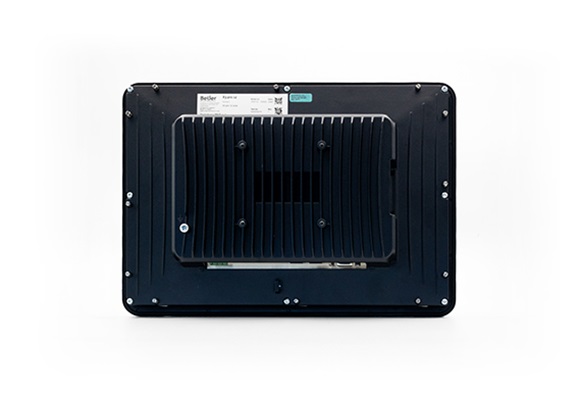

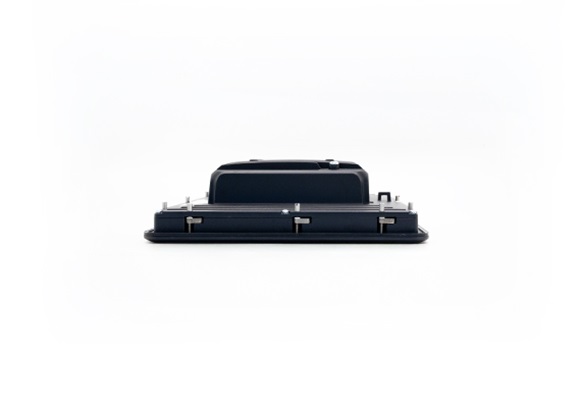

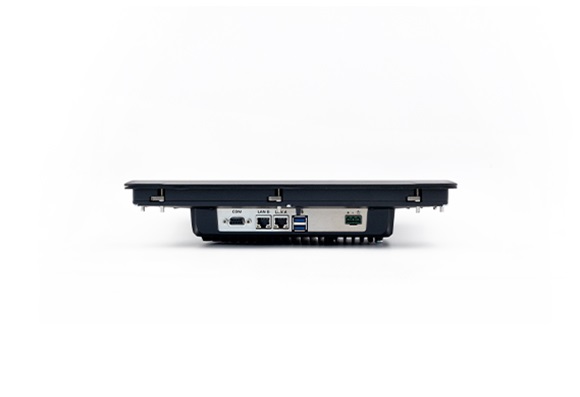

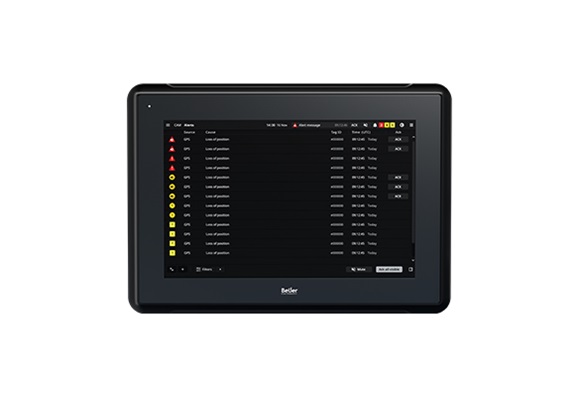

X3 Marine Web WebIQ Series 12″ HMI
$5,925.00
each ex-GST*
12” web client HMI bundled with WebIQ 4000 tags license
Part Number: X3 marine 12 web WebIQ [110-0006]
- Ready-to-use hardware/software bundle
- 100% HTML open and future-proof HMI technology
- Design optimized for use in marine environments
- Cybersecurity design based on IEC 62443-4-2
- 12,1″ 1280 × 800 pixel (16:10) TFT-LCD with resistive touchscreen
- -10°C to 60°C operating temperature
- -20°C to 70°C storage temperature
- DNV, ABS, LR, BV, NK, CCS, KR marine certfications
X3 MARINE WEB SERIES
Industrial Durability. Optimised for marine Environments
The X3 marine HMIs offer a versatile and secure platform for iX-based applications, featuring custom-tailored functionality with C# scripting and extended capabilities through NuGet packages. Adhering to IEC 62443-4-2 standards and marine-certified, they ensure secure operation and reliable performance at sea. With high-quality hardware, award-winning design, powerful CPUs, and large memory, the X3 marine HMIs guarantee maximum uptime. Additionally, X3 marine web panels are available to enhance your choice of technology.
Industrial Reliability. Web HMI’s Perfect Match
The X3 web combines robust performance with cutting-edge HTML5 web technology, enabling seamless integration in industrial, marine, and rugged environments. Built for reliability, functionality, and cybersecurity, X3 web HMIs are certified for diverse applications and optimized for Web/HTML5 HMI application, offering sharp visuals, intuitive operation, and flexible sizes. The X3 web HMIs are available in versions bundled with WebIQ software and as stand alone HMIs.
Comprehensive certifications
UL, CE, KCC, FCC certified, plus marine certifications for bridge, engine, and control room, and UL, ATEX, and IECEx for hazardous areas. * X3 extreme models only.
Strong platform
An intuitive, well-supported, and rigorously tested platform for WebIQ, ideal for both client and server applications.
HTML5 for industry
Enables HTML5 web technologies in industrial, marine, and rugged environments, featuring reliable, robust and powerful performance.
Cybersecurity design
Designed and built with cybersecurity in mind, adhering to IEC 62443-4-2 standards for secure and reliable operations.
Supports Docker
The open X3 web platform supports Docker containers, ensuring secure and versatile application management.
Enhanced user experience
Hardware-accelerated graphics and higher color depth deliver sharp visuals, fast responsiveness and high-quality rendering, enhancing user experience.
|
Mechanical |
Mechanical size: 340 x 242 x 70 mm
Mounting option: Panel Mount / VESA 75 x75 Number of touches: 1million finger touch operations Touch type: Resistive Cut-out size: 324 x 226 mm Weight: 2.7 kg Housing material: Powder-coated aluminum, Black |
| Power | Input voltage: 24 VDC (18 to 32 VDC) CE: The power supply must conform with the requirements according to IEC 60950 and IEC 61558-2-4.UL and cUL: The power supply must conform with the requirements for class 2 power supplies.
Power consumption: typ- 13W / max. 20W Input fuse: Internal DC fuse, 4 AT |
| System | CPU: i.MX 8M Plus Quad Cortex®-A53 1,6GHz
RAM: 4 GB FLASH: 32 GB eMMC CYBERSECURITY: Cybersecurity design based on IEC 62443-4-2 |
| Display | Size diagonal: 12.1″ diagonal
Resolution: 1280×800 pixels Backlight: LED Backlight Backlight life time: 50000 hours Backlight brightness: 400 cd/m2 Backlight dimming: Marine Wide Dimming Display type: TFT-LCD with LED backlight Display pixel error: Class I, according to ISO 9241-307 |
| Serial communication | Number of serial ports: 1 Port 9pin DSUB
Serial port 1: RS 232 (RTS/CTS) Serial port 2: RS422/485 Serial port 3: RS485/CAN |
| Ethernet communication | Ethernet ports: 2
Ethernet port 1 1×10/100/1000 Base-T (shielded RJ45) Ethernet port 2 1×10/100/1000 Base-T (shielded RJ45) |
| Expansion interface | SD card: 1 x SD card
USB: 1 x USB Host 3.0, 1 x USB Host 2.0 |
| Environmental | Operating temperature: -10°C to +60°C
Storage temperature: -20°C to +70°C Shock: 15g, half-sine, 11ms according to IEC60068-2-27 Vibration: 1g, according to IEC 60068-2-6, Test Fc Sealing front: IP65, NEMA 4X/ 12 and UL50E Type 4X/ 12 Sealing back: IP20 Humidity: 5% – 85% non-condensed Altitude: (max) < 3000m |
