USB to Serial Cable (RS232)

$45.00

each ex-GST*

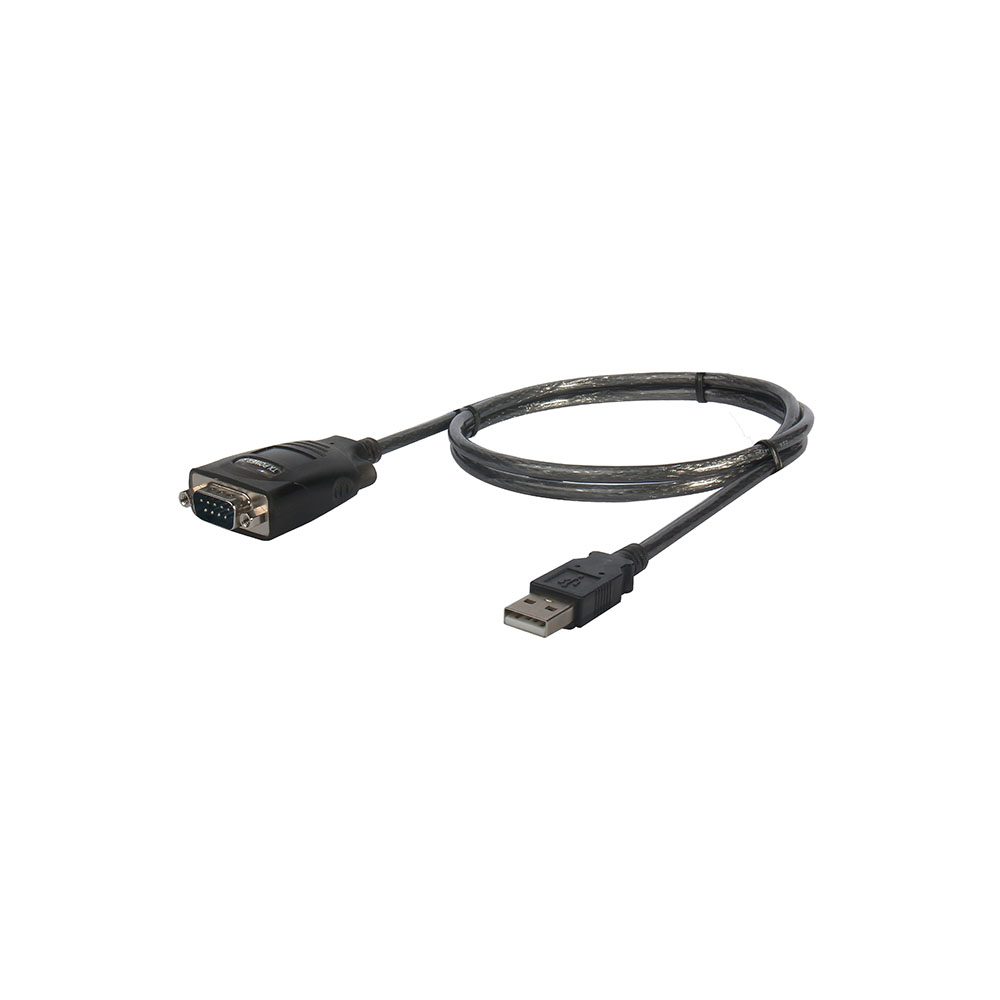

USB to RS-232 Adapter 9-Pin SUB

Part Number: UMC-201XS

  • Fully Compliant with USB Specification 1.1 / 2.0
  • Supports the synchronous and asynchronous serial interfaces
  • Supports remote wake-up and power-on-reset
  • ±15kV HBM ESD protection
  • 512 byte receive buffer and 512 byte transmit buffer utilizing buffer smoothing technology to allow for high
    data throughput
  • Compatible with Windows XP / Vista / 7 / 8 / 8.1/ 10; Windows Server 2012 / 2012R2 / 2016 / 2019 / 2022 ;
    Mac OS 10.3 to 10.15 / 11 ; Linux OS 3.2 or higher
  • Length – 110cm

The USB to Serial Bridge Converter is a low-cost, high-performance device. It operates as a bridge and provides easy connectivity between one USB port and serial ports. The serial port can be configured as an asynchronous UART interface and can support flow control. It is designed to be compliant with a variety of applications, including COM port replication, and is ideally suited for many peripherals like POS terminals, Barcode readers, Printers, Gaming consoles, Medical devices, Modem, Serial Mouse, Industrial meters, PDA, GPS, etc.

Data Transfer Rates Up to 230 Kbps
LED 3 (TX / Power / RX)
Connectors Host: USB A Male

Device: DB-9 Male (Hex Nut)

Power Consumption 40mA
Environment Operating Temp: 0 ℃ ~ 40 ℃

Storage Temp: -20 ℃ ~ 60 ℃

Humidity: 0~80% RH, Non-condensing

Cable Length  1.1m

UMC-201XS Datasheet



UMC-201XS Drivers

UMC-201XS User Manual
