NP-6116 Automation PC

$1,275.00

each ex-GST*

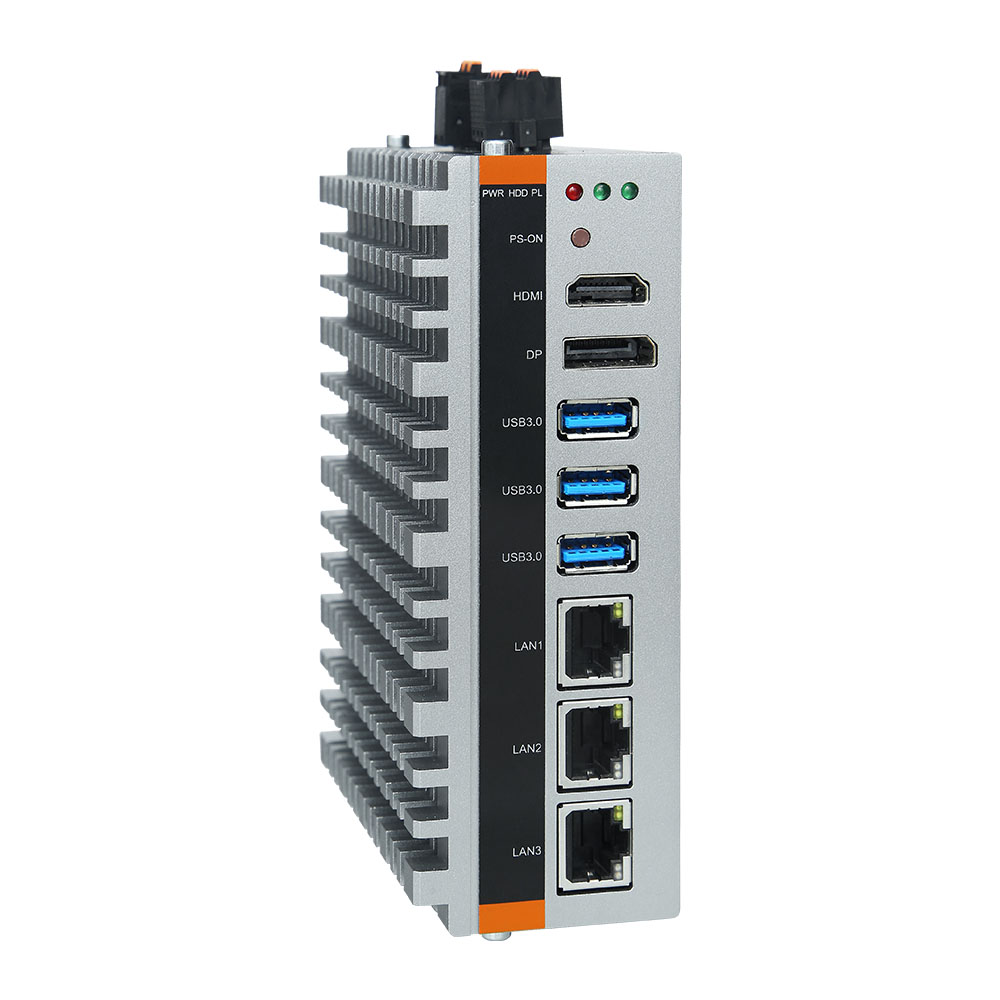

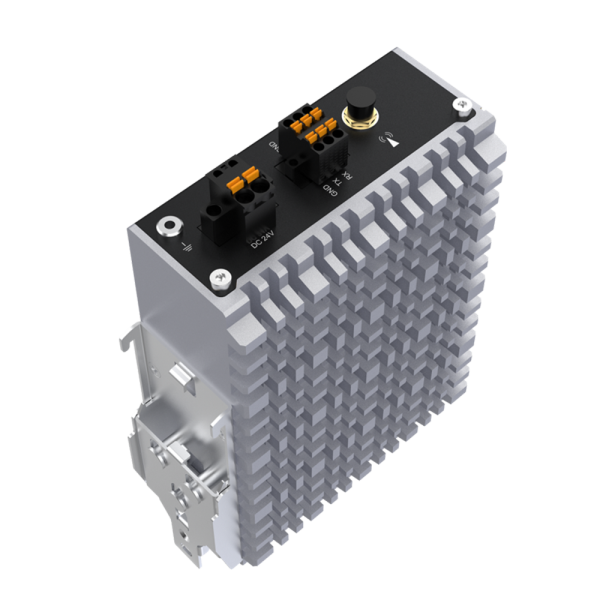

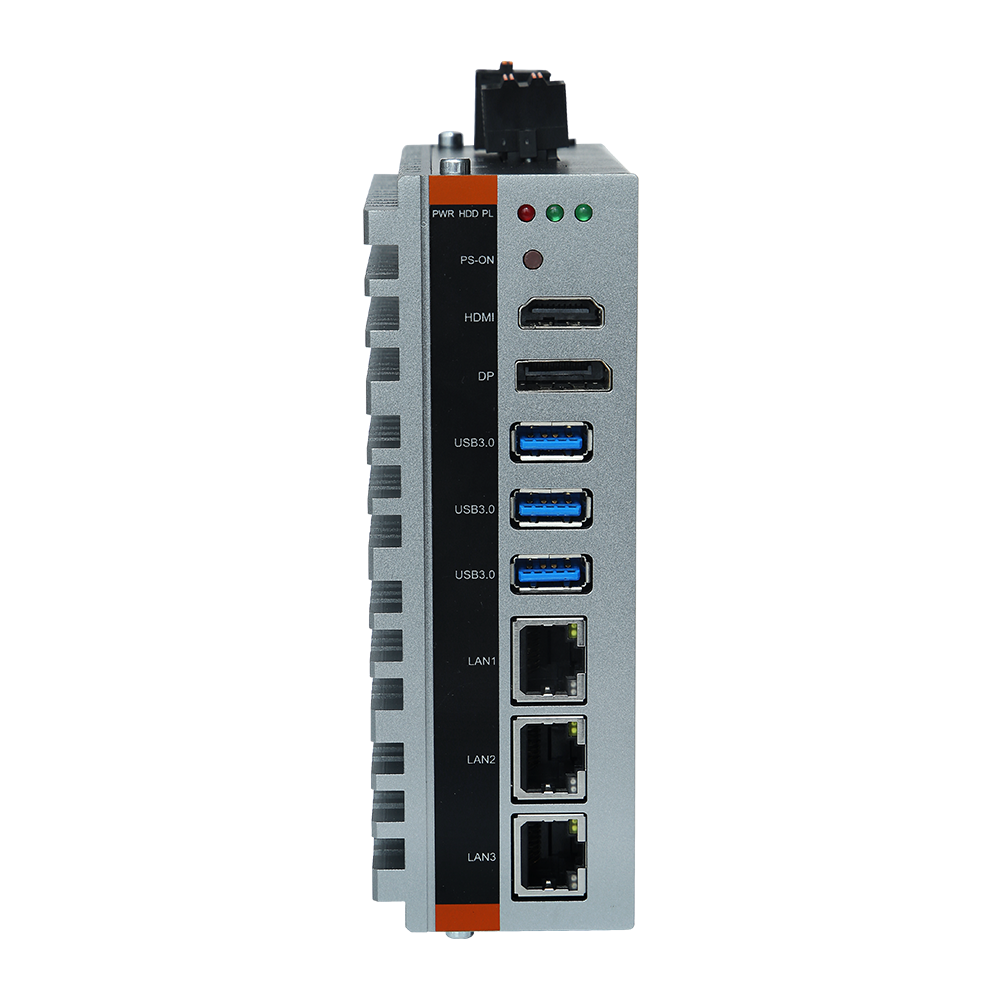

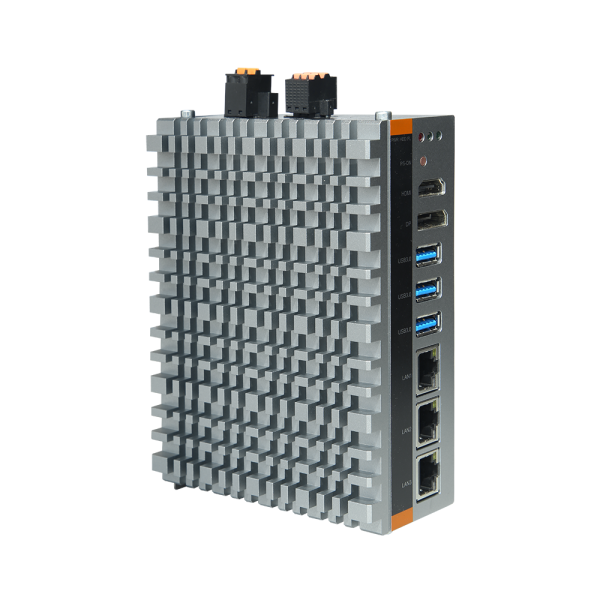

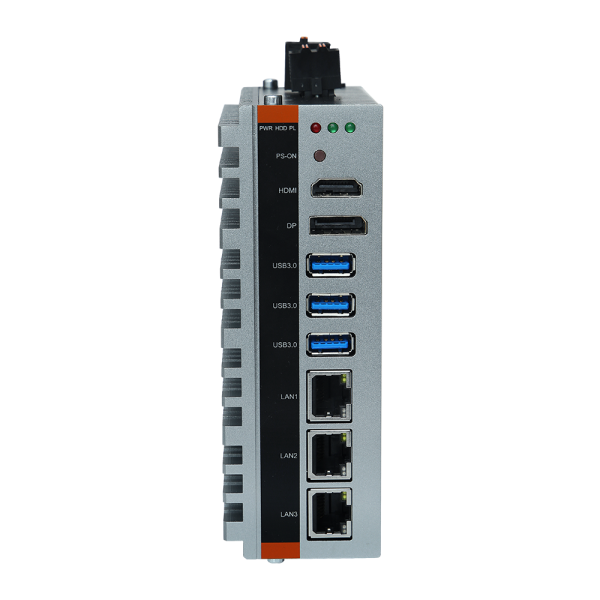

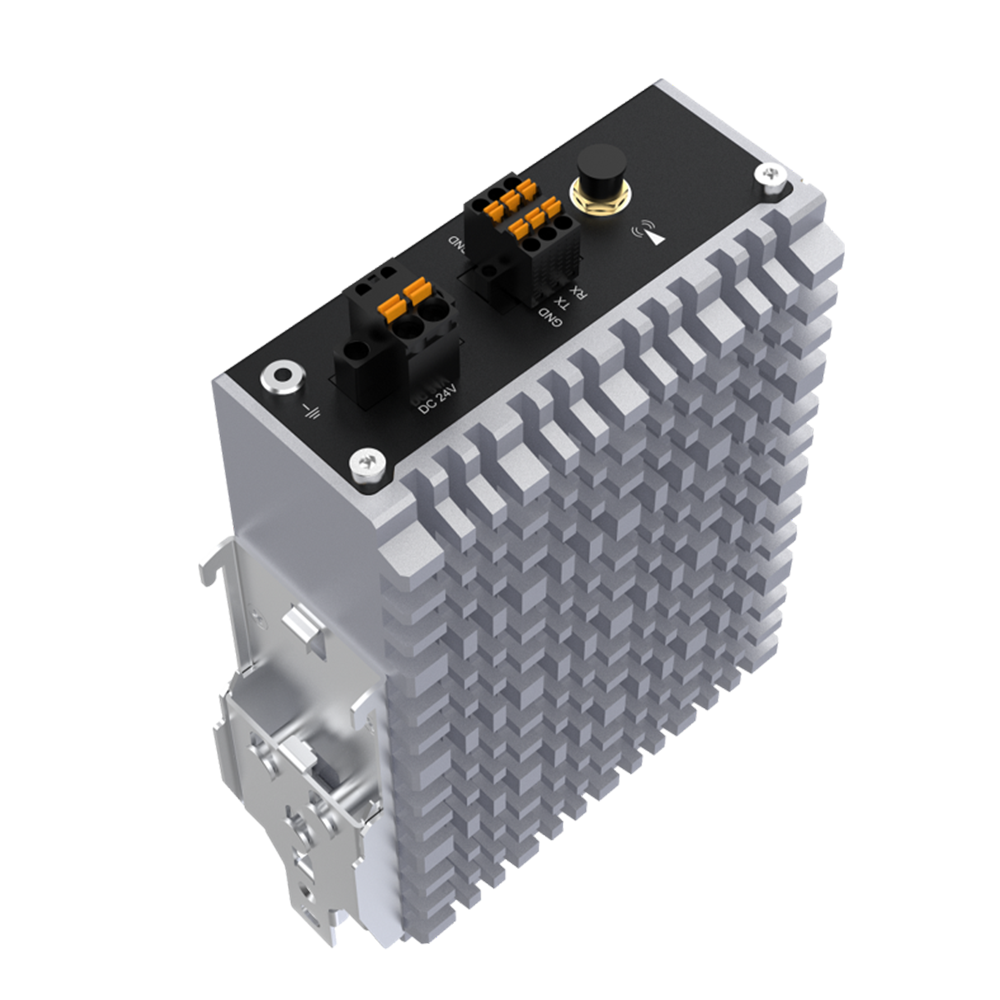

Automation PC, based on Intel® Celeron™ J6412

Part Number: NP-6116-J6412-R03

  • Intel® Celeron™ J6412 processor
  • 16GB DDR4
  • 512GB SSD
  • 3 x GbE LAN controller
  • 3 x USB3.1
  • 1 x RS232, 1 x RS485
  • 1 x Programmable LED
  • HDMI/DP Display ports
  • DC12~24V Power supply with overcurrent, overvoltage and polarity inverse protection
  • Suppied with DIN-Rail mounting kit
  • Wide operating temperature -20 ~ 60℃ supported

Introducing the cutting-edge Nodka NP-6116 industrial box PC, a revolutionary solution designed to elevate your industrial computing experience. Powered by the robust Intel® Celeron J6412 processor, clocked at an impressive speed range of 2.0 to 2.6GHz, this compact powerhouse is engineered to meet the demands of modern industrial applications. With a focus on performance, reliability, and space efficiency, the Nodka NP-6116 pushes the boundaries of industrial computing, offering a seamless blend of processing power and compact design. Whether you’re engaging in data-intensive tasks, advanced automation, or resource-intensive applications, the Nodka NP-6116 is your ultimate companion for streamlined efficiency and uncompromised performance.

System

CPU: Intel® Celeron J6412, 2.0~2.6GHz, 4 cores/4 threads, 1.5MB L2

TDP: 10W

BIOS: AMI UEFI 256Mb

Memory: 1 x SO-DIMM DDR4-3200MHz (Up to 32GB)

Storage: 1 x M.2 SSD 2242 (64GB, 128GB, 256GB, 512GB or 1TB)

USB: 3 x USB3.1

COM: 1 x RS232, 1 x RS485

Ethernet: 3 x Intel GbE LAN

DP: Support up to 4096 x 2160 @60Hz

HDMI: Support up to 3840 x 2160 @60Hz

Expansions: 1 x Full-size PCIe Mini slot with SIM card holder

DO: 1 x Programmable led

Watch Dog: 1~255 levels programmable

OS Support Microsoft Windows: Windows 10

Linux: Ubuntu

System CPU: ARM9 400 MHz

RAM: 128 MB

FLASH: 256 MB, 200 MB free

Power Voltage Input:  DC12-24V ±10%, overcurrent, overvoltage and polarity inverse protection

Power Consumption: Max. 45W

Chassis Structure: Aluminum-magnesium alloy box, Fanless, Wall-mounted or DIN-Rail

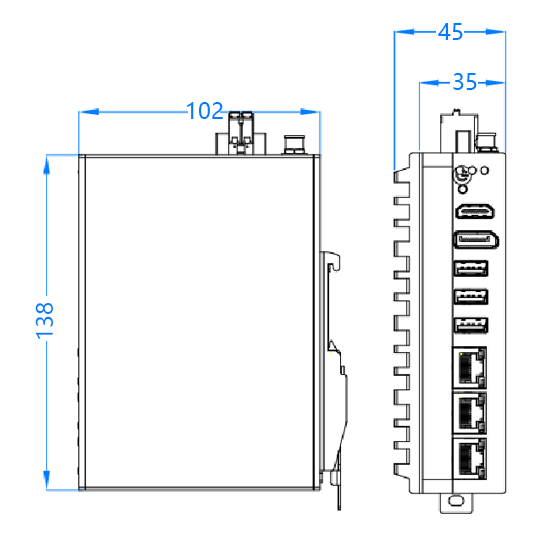

Dimensions: (L)138mm x (W)102mm x (H)48mm

Net Weight: 1.06Kg

Environment Work Temperature: -20ºC ~ 60ºC with air flow (SSD)

Storage Temperature: -40ºC ~ 80ºC with air flow (SSD)

Relative Humidity: 5~95% (Non-condensing)

Operating Vibration: 5~500Hz, 1.5Grms@with SSD, Follow IEC60068-2-64

Operating Shock: 20G peak acceleration(11ms duration) with SSD, Follow IEC60068-2-27

EMC: CE/FCC Class B
