CloudVPN Gateway Ethernet+Wifi
$1,295.00
each ex-GST*

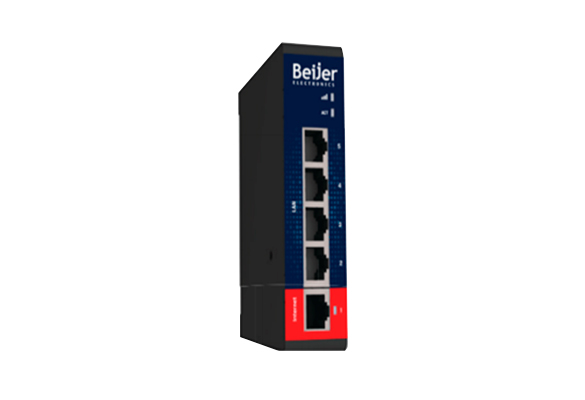

Beijer Electronics CloudVPN Gateway – Ethernet+WiFi
Part Number: 600-0003
- Remote access and networking device
- WiFi (Client Mode and Access Point) + Ethernet WAN
- Easy to set-up Secure Remote Access Router – Built in firewall
- Secure Cloud VPN Server with Web VNC and other value added features
- AES – 256 – bank level security
Powerful remote access with CloudVPN Gateway
The Beijer Electronics CloudVPN Gateway solution offers a cyber secure and powerful remote access to your equipment and devices on-site. It is easy to install and configure, and the CloudVPN Gateway solution provides 3 different connectivity options; wired Ethernet, WiFi and LTE, which can be combined and enables you to set up redundant connections and make your network highly resilient. With the CloudVPN service you can set up different user profiles with different access rights, providing high security.
The CloudVPN Gateway solution is a great addition to our remote access offering and brings complementary value to a product broad portfolio enabling you to create smart functional automation solutions.
Remote access made simple
The CloudVPN Gateway solution offers unlimited bandwidth without complex tiers of subscription.
Fully cyber secure
The CloudVPN Gateway solution is highly cyber secure with an ISO 27001 certification by Digitrust and reliable two-factor authentication.
Cloud logging*
Log data to the cloud directly from your device using CloudVPN and share the information in visual, configurable dashboards.
Clever cloud notifications*
The CloudVPN solution monitors data from your machines and enables you to customize level of alarms and send notifications.
A simple-to-use-portal
Easy to use graphical dashboard/UI editor. Learn more >>
A flexible platform
Brand your own portal experience with customizable colors, logo, etc. Learn more >>
A secure platform
Role based access control including 2 factor authentication. Learn more >>
Tutorial videos
User management, platform, access management etc. Learn more >>
* Feature requires subscription
| General | Part number: 600-0003
Warranty: 2 years |
| System | Encryption: AES-256-CBC with SHA512, HTTPS with TLS 1.2 or higher
IO: -1 x digital input, Optocoupler. current limited to <5mA, Voltage 0 – 29V – >7-29V is interpreted as ‘1’, 0-3V is ‘0’ – Software Configurable I/O state (allow/prevent VPN connections) |
| Interface | Antenna: 1 x WiFi network antenna connector, RP-SMA Female
LAN: 4 x RJ-45, 10/100/1000 Mb/s USB: 1 x USB 2.0, type A WAN: 1 x RJ-45, 10/100/1000 Mb/s |
| WiFi | Wi-Fi IEEE 802.11 version: b/g/n
Wi-Fi modes: Station (Client) Mode and Access Point Frequency channels: Frequency 2.412 – 2.462 GHz, 11 channels |
| Power | Input voltage: 12-24V DC (+/-20%), reverse polarity protected |
| WAN | WAN features: Independent of operating systems. Works in all Internet connections (operator independent). Supports HTTP proxy servers with and without authentication. Firewall friendly. Works with dynamic, static and private IP addresses. Built-in firewall (NAT).
Encryption: AES-256-CBC with SHA512, HTTPS with TLS 1.2 or higher |
| Mechanical | Housing material: Galvanized steel
Mounting option: DIN rail attachment Size: 95 mm x 116 mm x 28 mm (excl. DIN rail clip) Weight: 310 g |
| Environmental | Operating temperature: -20 °C … +65 °C / -4 °F … +149 °F
Sealing: IP20 Storage temperature: -20 °C … +65 °C / -4 °F … +149 °F |
| Accessories | Included accessories: DIN rail attachment |
Link to Beijer Electronics CloudVPN Video Tutorials
Link to Beijer Electronics CloudVPN Help Center
We are continuously updating these pages – please check back later for updates.
Link to Beijer Electronics CloudVPN Documentation Support Pages
We are continuously updating these pages – please check back later for updates.
